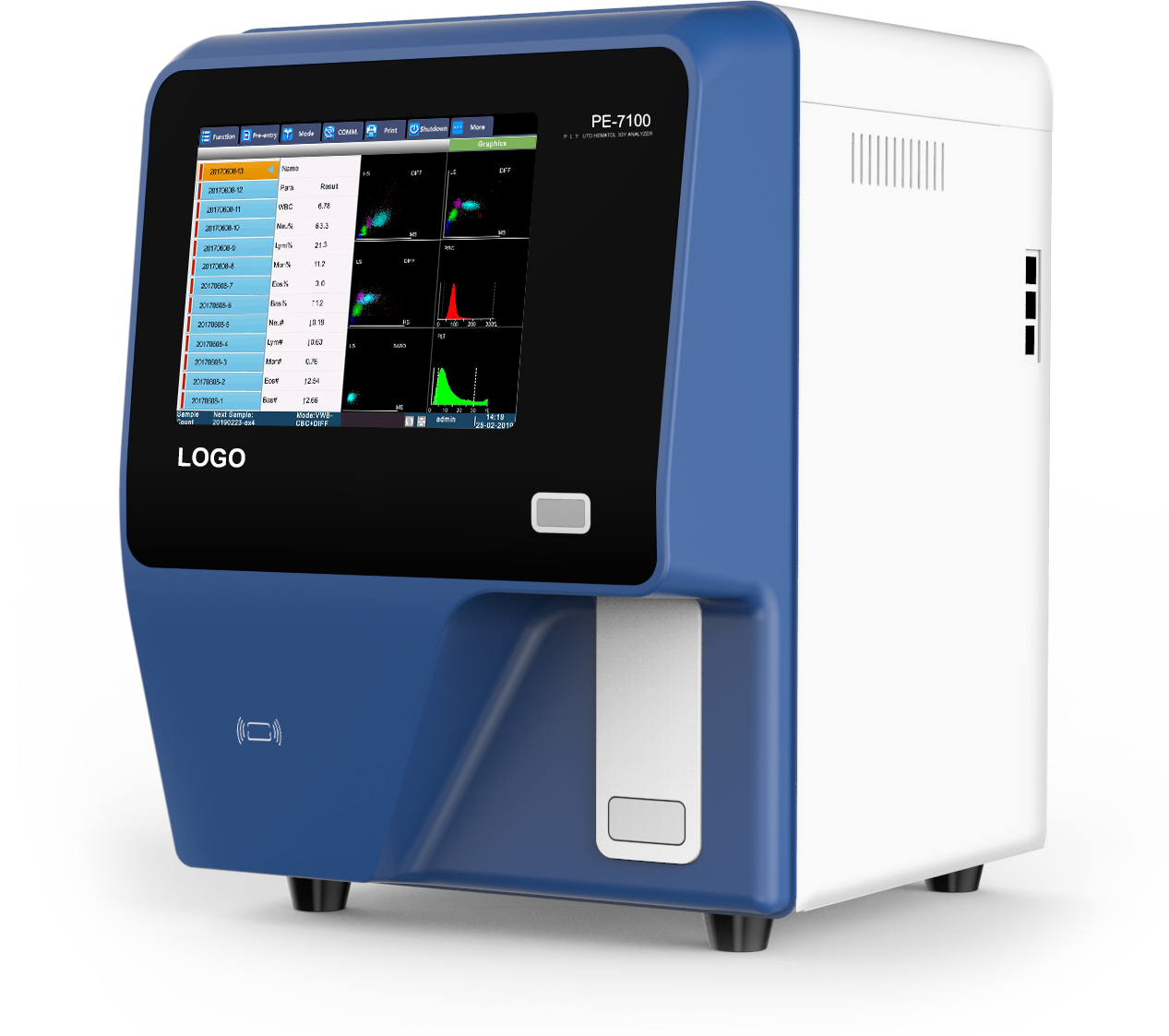

XX-7100
5-Part Fully Auto Hematology Analyzer
XX-7100
  • Design for you, Manufacturer for you, Unique Model
  • Electrical Impedance method for determining the RBC and PLT data;
  • Colorimetric method for determining the HGB;
  • Laser-based flow cytometry for determining the WBC data
  • 23

    Parameters

  • 4

    Scatter diagrams

  • 3

    Histograms

  • 8

    Parameters for research

Advanced Technology
Specifications
  • Parameters:

    23 parameters+8 Research parameters +4 scatter diagrams and 3 histograms:WBC/RBC/PLT; 5 Diff of WBC

  • Sample volume:

    Venous Mode/Capillary Mode/Pre-diluted Mode≤20μL

  • Operation Mode:

    Touch screen operation,also support USB keyboard & mouse; Based on Linux system

  • Throughput

    60 samples/h, 24 hours work with auto standby

  • Storage

    50,000 sample results inclusive of the histograms

  • Application

    Baby/kid/women/man/normal/customized

  • Quality control:

    L-J; X-B

  • Display

    10.4'' touch screen

  • Language

    Multi-Language supported,user can on-line switch interface language

  • Calibration mode:

    Manual calibration and auto calibration

  • Weight

    26.5KG

  • Dimension

    364×498×431(mm)

  • Working environment

    Temperature: 10-30℃, Humidity≤70%

  • Test mode

    CBC+DIFF, CBC
