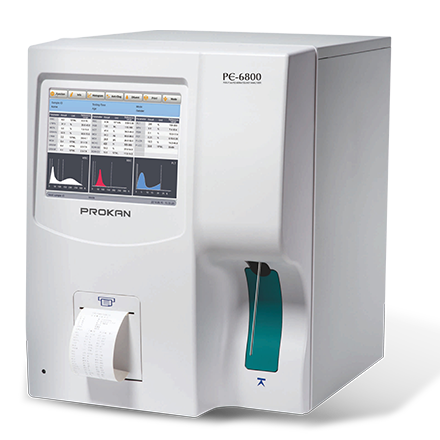

PE-6800
3-Part Fully Auto Hematology Analyzer
PE-6800
  • Automated & User-friendly Interface
  • Accurate Results & Low Sample Consumption
  • Easy Maintenance & Environment-friendly System
  • Perfect QC System
  • 20

    Parameters

  • 3

    Histograms

Advanced Technology





Specifications
  • Principle

    Electrical resistance for counting, cyanide free method for hemoglobin

  • Parameters
    3-part differential of WBC; 20 parameters (WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR) + 3 color histograms (WBC/RBC/PLT)
  • Sample Consumption

    Venous mode: 9.6μL, Capillary mode: 9.6μL, Pre-diluted mode: 20μL

  • Working Mode

    Single channel counting detection+independent HGB measurement system; 24 hours with auto standby

  • Operation Mode

    USB keyboard & mouse (PE-6000Plus: Touch screen)

  • Language

    Multi-language suppored

  • Throughput

    ≥30 samples/hour

  • Storage

    50,000 sample results with histograms, record supported export and backup

  • QC Mode

    L-J , SD, CV, QC histogram

  • Cross Contamination Ratio

    WBC/RBC/HGB﹤0.5%, PLT﹤1%

  • Display

    8" LCD, resolution: 800×600

  • Reference Value

    Baby, Kid, Woman, Man, Normal and Customization

  • Interface

    4×USB, 1×ethernet, 1×VGA (for external monitor)

  • Printer

    Built-in thermal printer, support external laser and inkjet printer, 5 kinds of report formats supported

  • Environment Requirement

    Temperature: 15℃~35℃; Humidity: 10%-90%
